  PDA-掌上電腦

產品規格

型號	Seiko DPU-S245
Method	Thermal line dot printing
Number of dots/line	384
Resolution(dots/mm)	8
Paper width(mm)	58
Printing width(mm)	48
Speed(mm/sec)max	100
Outside diameter of paper roll (mm)max	Φ38
Character matrix (H x W dots)	24 x 12, 24 x 24, 16 x 8, 16 x 16
Character size (H x W mm)	3.0 x 1.5, 3.0 x 3.0, 2.0 x 1.0, 2.0 x 2.0
Number of columns	24, 12, 32, 16
Type of Paper	Roll paper, Label roll paper
Character type	Extend graphics character set ,Katakana character set, CP1252, Optional font, Downloaded character, User-defined character, JIS 1&2 level kanji
Bar code	UPC-A/E, JAN(EAN)8/13, ITF, CODE39, CODABAR, CODE128, PDF417, QR Code, MaxiCode, Data Matrix
Power supply(V)	Li-lon battery, Specified AC adapter
Communication interface	Bluetooth®*1, USB, IrDA(ver1.2), Serial
Input buffer	4K bytes
Command	ESC/P™*2 conformity
Cutting	Tear bar
Operating Tmperature(°C)	-10 to 50
Service life(km)	50
Dimensions(WxDxH mm)	83 x 130 x 45
Mass(g)	Approx.280
Standard	FCC, CE, VCCI, CCC

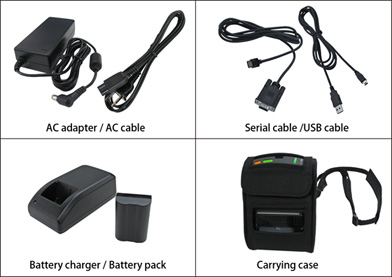

Option	AC adapter, Battery pack, Battery charger, AC cable, USB cable, Serial cable, Carrying case
Driver	Windows® XP/Vista/7/8(32bit/64bit), Library(Windows® CE5.0/6.0, Windows® Mobile5.0/6.0)
EMI	VCC Type II FCC class B

Serial interface

Item	Specification
Baud rate	1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 bps
Data bit	7bits, 8bits
Parity bit	Odd, Even, or None
Stop bit	1bit, 2bits
Control method	H/W BUSY, Xon/Xoff

USB

USB printerclass 2.0 conformity

Bluetooth interface specification

Based on Bluetooth Ver.2.0 + EDR

Infrared interface specification

Base on IrDA Ver. 1.2
Based on BHT Ir protocol

標題	檔案下載
使用手冊（英文版）	下載
列印驅動程式（for Microsoft Windows8、7、Xp、Vista 32bit only）	下載
.NET Compact Framework Print Class Library	下載
