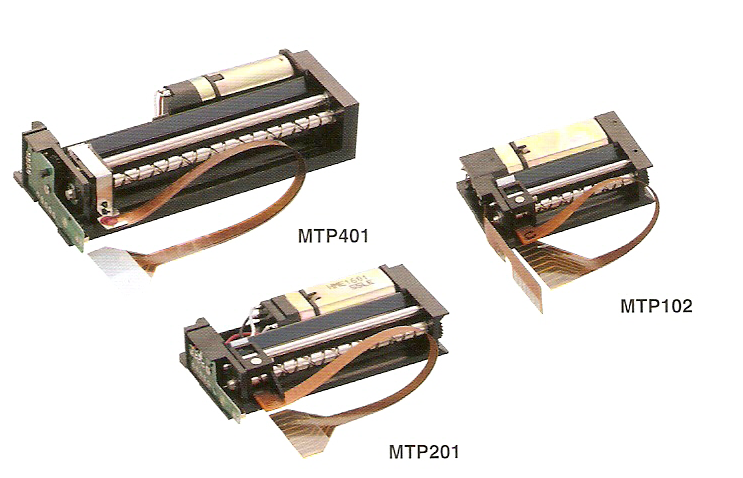

| Model |
MTP102-16B |
MTP201-20B |
MTP401-40B |
| Printing Type |
Character |
| Printing Method |
Thermal serial dot printing |
| Printing Direction |
Left to right |
| Printing Timing |
Synchronized with the tachogenerator |
| Paper width (mm) |
38 |
58 |
66.7 |
| Printing width (mm) |
26.4 |
45.9 |
66.7 |
| Printing Speed (line/sec) max |
1.2 |
1.0 |
0.5 |
| Paper path |
Curved |
| Character matrix (Hx W dots) |
7 x 5 |
| Character size (H x W mm) |
16 |
20 |
40 |
| Line spacing (mm) |
3.8 |
| Character spacing (dot) |
2 |
| Detection Home position |
Mechanical Switch |
| Power supply (V) |
4.0 to 6.0 |
| Peak current (A) |
3.2 (5V on) |
| Service life (Lines) |
5000,000 |
| Operating temperature |
0 to 50 |
| Dimensions (W x D x H mm) |
48.0 x 31.0 x 13.8 |
70.0 x 34.0 x 14.4 |
91.5 x 35.5 x 20.0 |
| Mass (g) |
35 |
40 |
50 |
